0,96 inch mini gul OLED skærm. Knivskarpt billede med en opløsning på 128x64 pixels.
Fungerer på en strømforsyning på 3v-5v. Ideel til Arduino eller ESP32 / ESP8266 projekter.
Dimensionerne på dette board er kun 26,1 x 26,1 x 3,2mm.
Mål
Lengde: 2,61cm
Bredde: 2,61cm
Højde: 0,32cm
Sådan tilslutter du Mini OLED display gul 0.96 inch 128x64 I2C til en Arduino UNO eller ESP32, med en eksempelsketch, du kan uploade med det samme.

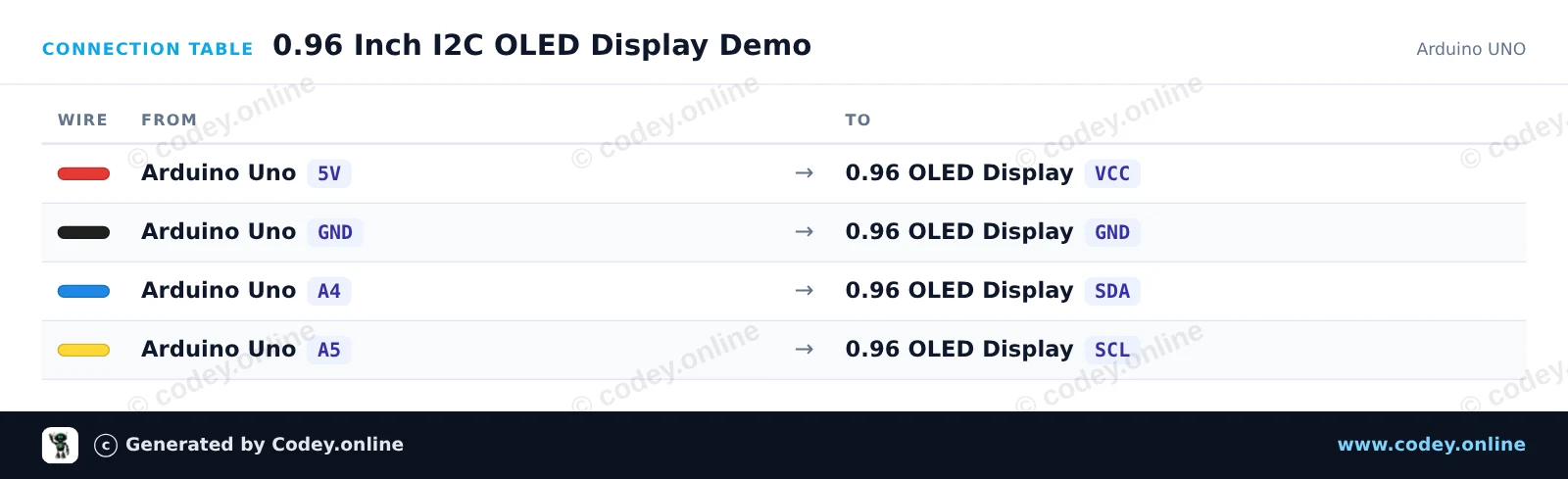

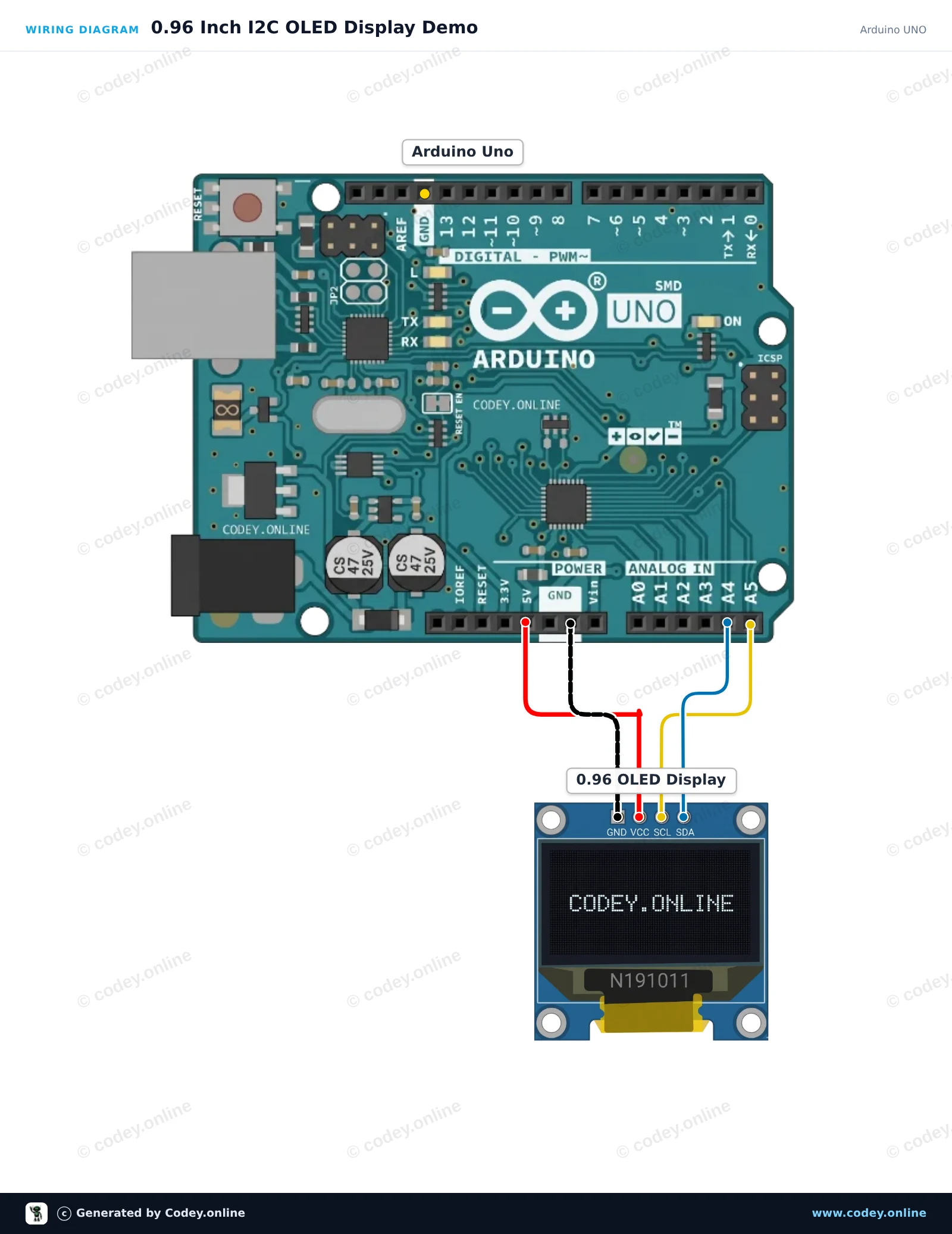

Forbinder det 0.96-tommer I2C OLED-display (SSD1306) til Arduino Uno for at vise tekst, linjer og en tæller, der stiger. Displayet kommunikerer over I2C med A4 til SDA og A5 til SCL. U8g2 håndterer rendering af displayet ved hjælp af en effektiv page buffer.
/*
* ==================================================================
* Generated by Codey.online — https://www.codey.online
* ==================================================================
* Project : 0.96 Inch I2C OLED Display Demo
* Board : Arduino UNO (arduino:avr:uno)
* Parts : OLED Display 0.96 inch
* Libraries : U8g2 2.36.19
*
* Codey Online is an AI-powered browser IDE for Arduino and ESP32.
* Describe your project and Codey writes the code, draws the wiring
* diagram and uploads it to your board, straight from the browser.
* This code is free to use, modify and share, without warranty.
* ==================================================================
*/
#include <Wire.h>
#include <U8g2lib.h>
// 128x64 SSD1306 noname I2C display using page buffer (low RAM usage)
U8G2_SSD1306_128X64_NONAME_1_HW_I2C u8g2(U8G2_R0, /* reset=*/ U8X8_PIN_NONE);
int counter = 0;
void setup() {
Serial.begin(115200);
u8g2.begin();
}
void loop() {
u8g2.firstPage();
do {
u8g2.setFont(u8g2_font_ncenB08_tr);
u8g2.drawStr(0, 12, "0.96\" OLED Demo");
u8g2.drawHLine(0, 15, 128);
u8g2.drawStr(0, 32, "Uptime:");
u8g2.setCursor(60, 32);
u8g2.print(millis() / 1000);
u8g2.print(" s");
u8g2.drawStr(0, 50, "Count:");
u8g2.setCursor(60, 50);
u8g2.print(counter);
} while (u8g2.nextPage());
counter++;
delay(1000);
}
Nødvendige biblioteker: U8g2 2.36.19
Wiring diagram and example code generated by Codey.online — https://www.codey.online

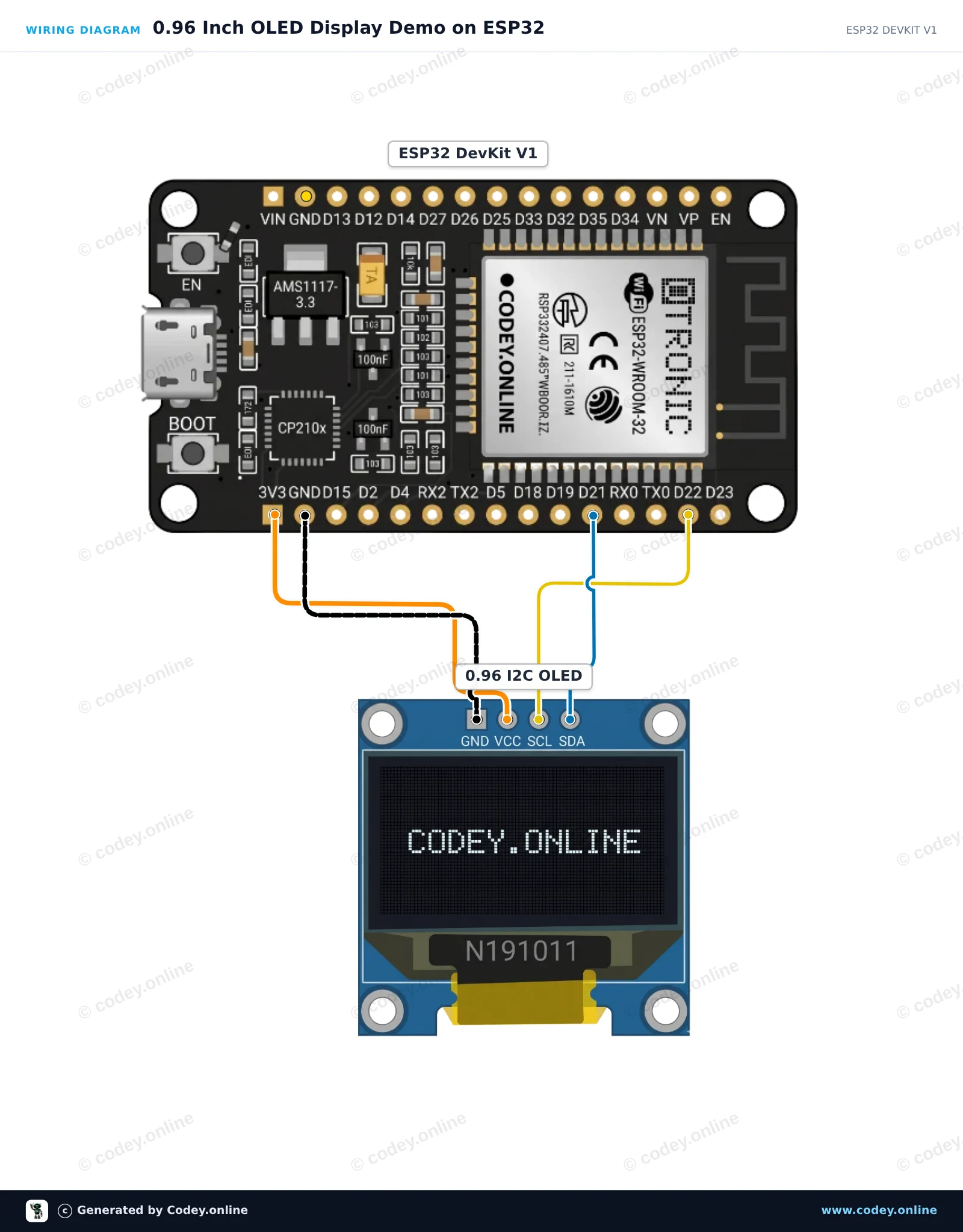

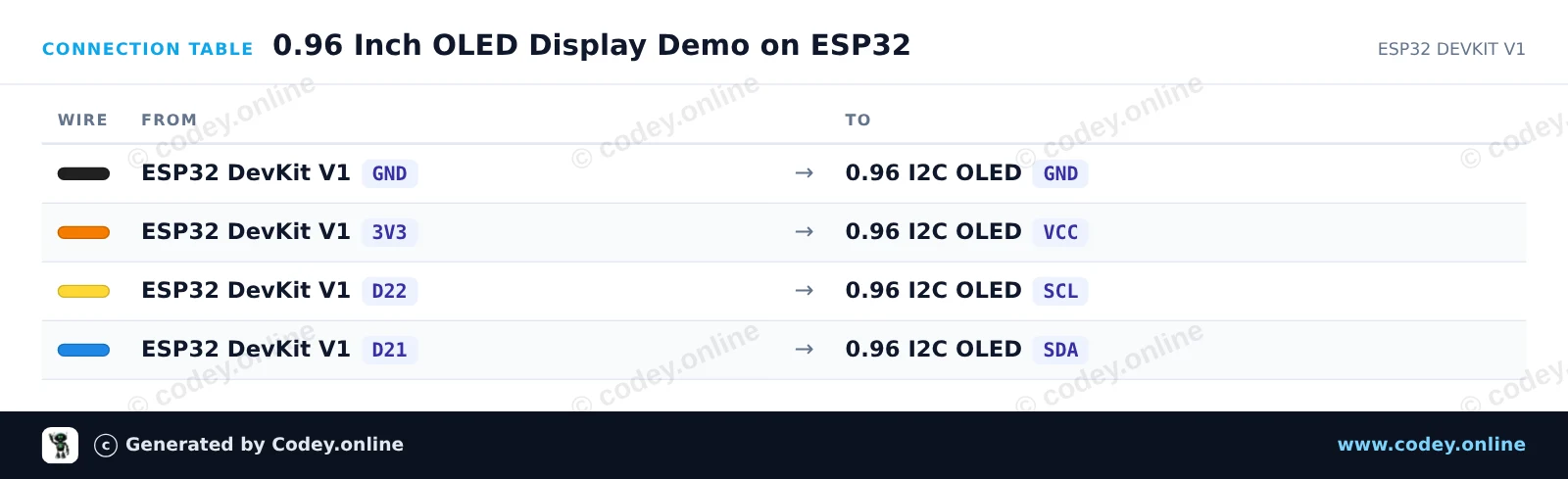

Dette projekt forbinder et 0.96 inch I2C OLED-display (SSD1306) til en ESP32. Sketchen initialiserer displayet og viser en enkel velkomstbesked sammen med en opdaterende uptime-tæller. Det er en hurtig og ren måde at kontrollere, at dit display virker.
/*
* ==================================================================
* Generated by Codey.online — https://www.codey.online
* ==================================================================
* Project : 0.96 Inch OLED Display Demo on ESP32
* Board : ESP32 DEVKIT V1 (esp32:esp32:esp32doit-devkit-v1)
* Parts : OLED Display 0.96 inch
* Libraries : Adafruit SSD1306 2.5.16, Adafruit GFX Library 1.12.6
*
* Codey Online is an AI-powered browser IDE for Arduino and ESP32.
* Describe your project and Codey writes the code, draws the wiring
* diagram and uploads it to your board, straight from the browser.
* This code is free to use, modify and share, without warranty.
* ==================================================================
*/
#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>
#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64
#define OLED_RESET -1
#define SCREEN_ADDRESS 0x3C
Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET);
int counter = 0;
void setup() {
Serial.begin(115200);
// Initialize I2C with default ESP32 pins (SDA=21, SCL=22)
Wire.begin(21, 22);
if (!display.begin(SSD1306_SWITCHCAPVCC, SCREEN_ADDRESS)) {
Serial.println(F("SSD1306 allocation failed"));
while (true); // Freeze if display initialization fails
}
display.clearDisplay();
display.setTextColor(SSD1306_WHITE);
display.setTextSize(1);
display.setCursor(10, 10);
display.println("ESP32 OLED Test");
display.display();
delay(2000);
}
void loop() {
display.clearDisplay();
// Header
display.setTextSize(1);
display.setCursor(0, 0);
display.println("ESP32 DevKit V1");
display.drawLine(0, 10, 127, 10, SSD1306_WHITE);
// Counter display
display.setTextSize(2);
display.setCursor(10, 24);
display.print("Count: ");
display.print(counter);
// Uptime in seconds
display.setTextSize(1);
display.setCursor(10, 48);
display.print("Uptime: ");
display.print(millis() / 1000);
display.print(" s");
display.display();
counter++;
delay(1000);
}
Nødvendige biblioteker: Adafruit SSD1306 2.5.16, Adafruit GFX Library 1.12.6
Wiring diagram and example code generated by Codey.online — https://www.codey.online
