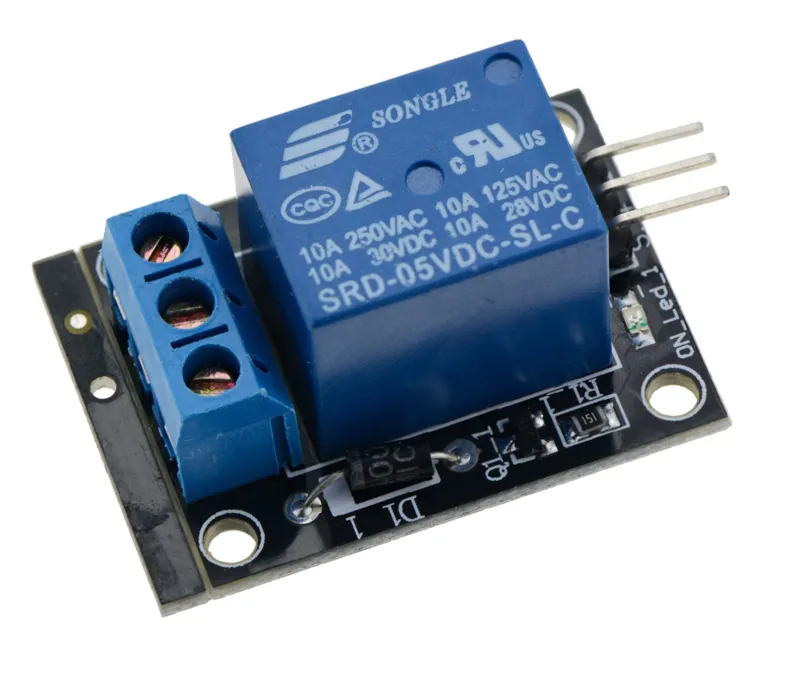

SKU: OT961-C105 Varenummer: YP924 EAN: 4639867568390
Søgetermer: relais 5v, 5v relais, relay 5v, 5v relay, relais hoog, relais high, relay high, blauwe relais, relais blauw, relais 250v, relais 220v, relais voor arduino, arduino relais, relais breadboard
Mål
Længde: 3,3cm
Bredde: 2,6cm
Højde: 1,7cm
Sådan tilslutter du Relais Module 5v til Arduino til en Arduino UNO eller ESP32, med en eksempelsketch, du kan uploade med det samme.

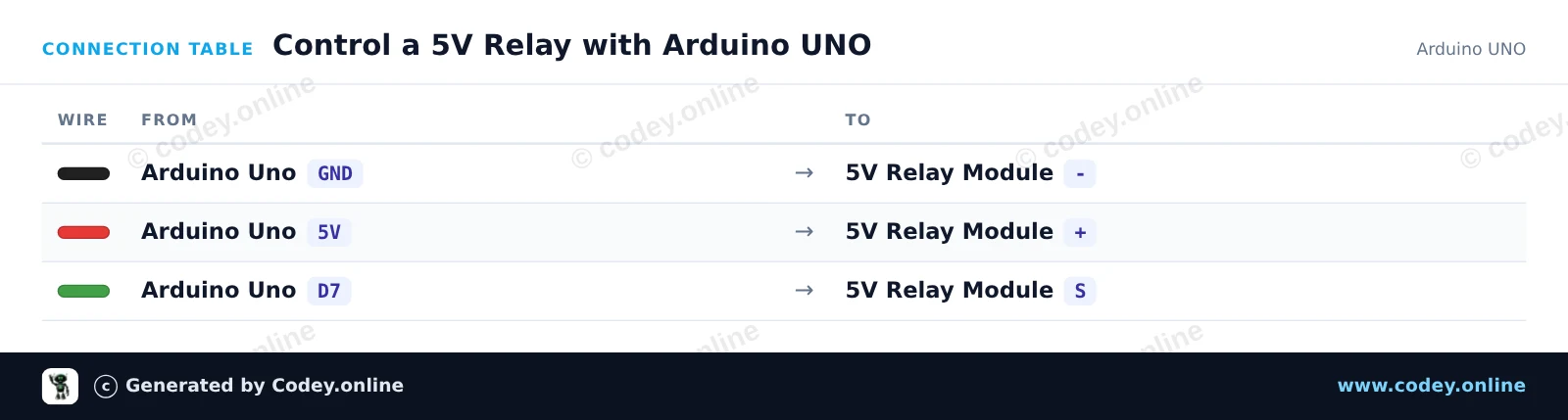

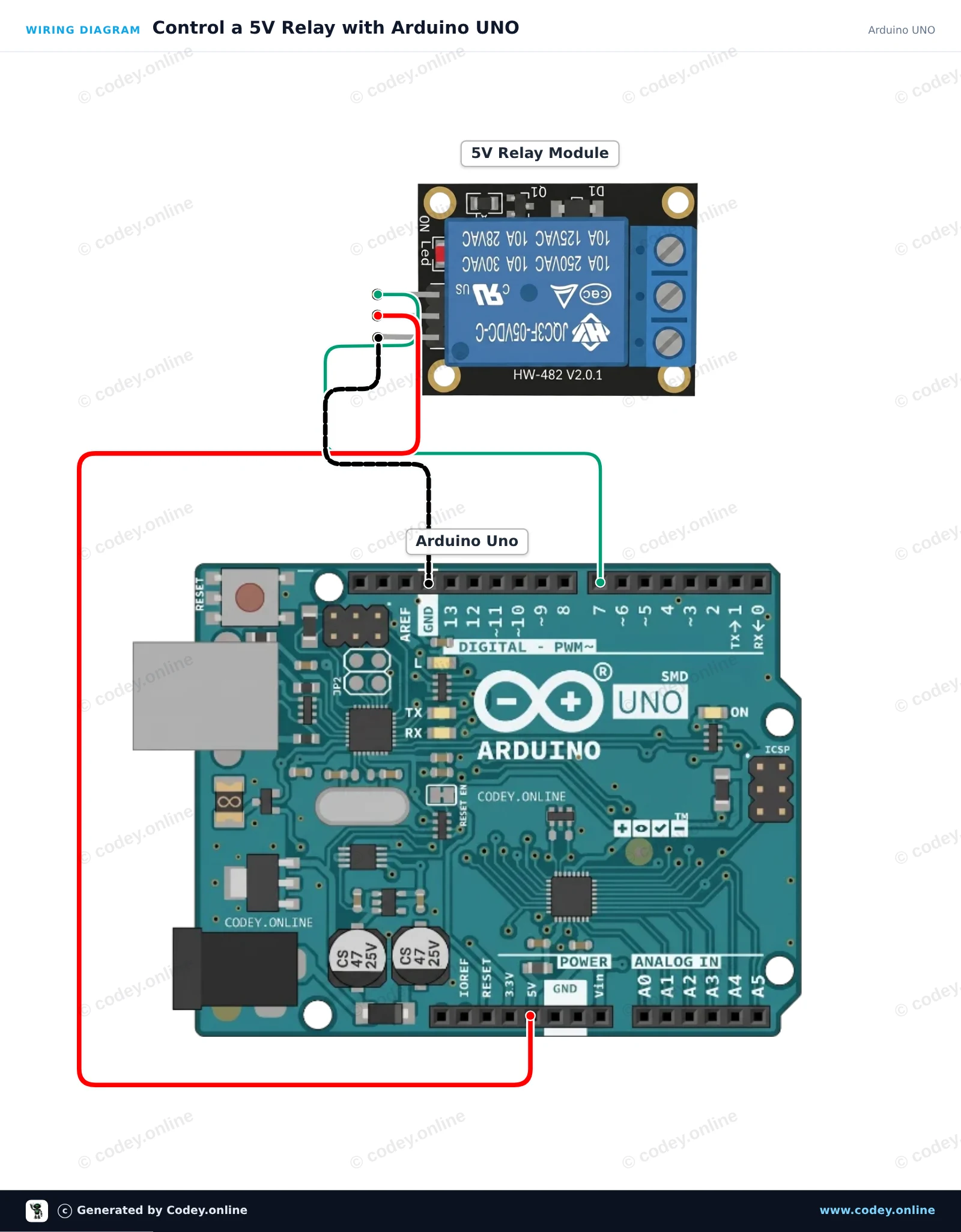

Dette projekt viser, hvordan man styrer et 5V-relæmodul med en Arduino UNO. Sketchet skifter relæet ON og OFF hver anden sekund, mens status udskrives til Serial Monitor. Du vil høre et hørbart klik fra relæet hver gang, det skifter tilstand.
English
Nederlands
Frans
Deutsch
Italiano
Español
Suomi
Polski
Ελληνικά
Български
Čeština
Hrvatski
Svenska
Aileen/*
* ==================================================================
* Generated by Codey.online — https://www.codey.online
* ==================================================================
* Project : Control a 5V Relay with Arduino UNO
* Board : Arduino UNO (arduino:avr:uno)
* Parts : Relay Module 5V
* Libraries : none (built-in)
*
* Codey Online is an AI-powered browser IDE for Arduino and ESP32.
* Describe your project and Codey writes the code, draws the wiring
* diagram and uploads it to your board, straight from the browser.
* This code is free to use, modify and share, without warranty.
* ==================================================================
*/
// 5V Relay Module Example
const int RELAY_PIN = 7;
void setup() {
pinMode(RELAY_PIN, OUTPUT);
Serial.begin(115200);
Serial.println(F("Relay module demo started."));
}
void loop() {
// Turn relay ON
digitalWrite(RELAY_PIN, HIGH);
Serial.println(F("Relay: ON"));
delay(2000);
// Turn relay OFF
digitalWrite(RELAY_PIN, LOW);
Serial.println(F("Relay: OFF"));
delay(2000);
}Wiring diagram and example code generated by Codey.online — https://www.codey.online

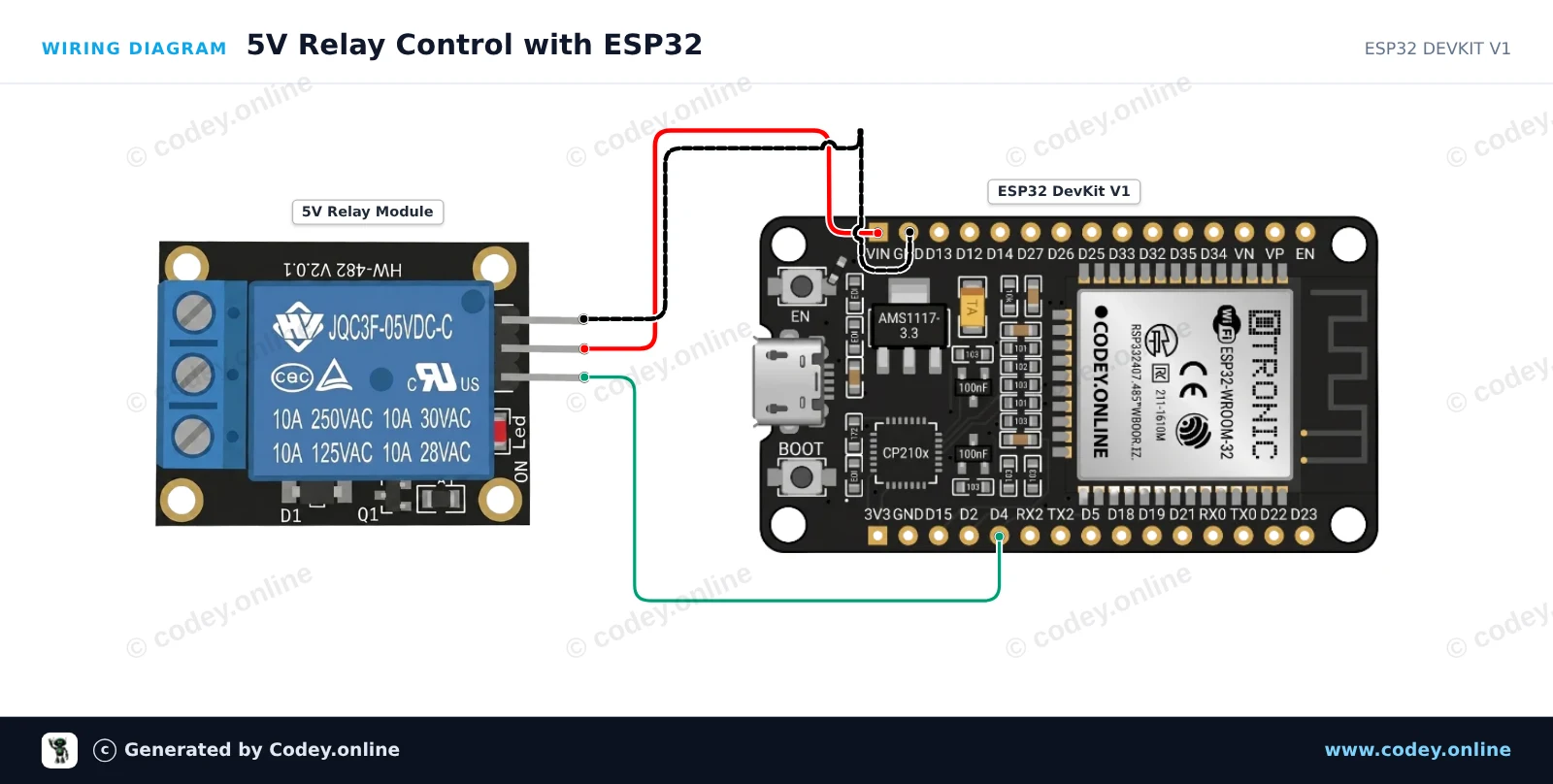

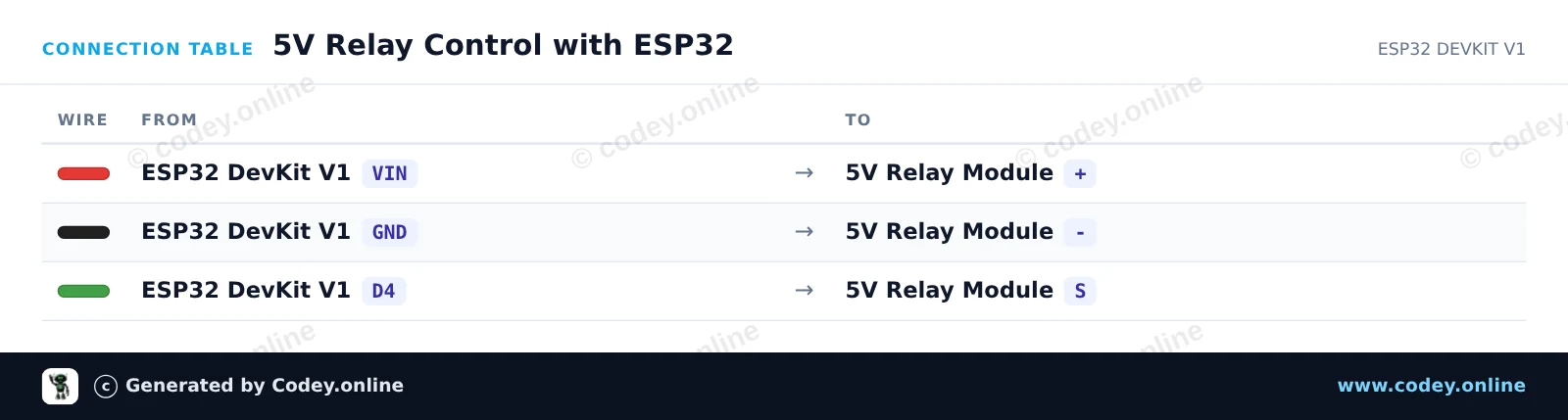

Dette projekt viser, hvordan man styrer et 5V-relæmodul med en ESP32. Relæet slår TIL og FRA hvert andet sekund, mens dets status udskrives til Serial Monitor. Relæet forsynes direkte fra ESP32 VIN-pin (5V fra USB) og aktiveres via GPIO 4.
/*
* ==================================================================
* Generated by Codey.online — https://www.codey.online
* ==================================================================
* Project : 5V Relay Control with ESP32
* Board : ESP32 DEVKIT V1 (esp32:esp32:esp32doit-devkit-v1)
* Parts : Relay Module 5V
* Libraries : none (built-in)
*
* Codey Online is an AI-powered browser IDE for Arduino and ESP32.
* Describe your project and Codey writes the code, draws the wiring
* diagram and uploads it to your board, straight from the browser.
* This code is free to use, modify and share, without warranty.
* ==================================================================
*/
// 5V Relay Control Example for ESP32
const int RELAY_PIN = 4;
void setup() {
Serial.begin(115200);
pinMode(RELAY_PIN, OUTPUT);
digitalWrite(RELAY_PIN, LOW);
Serial.println("Relay control initialized.");
}
void loop() {
// Turn relay ON (Active HIGH for standard modules)
Serial.println("Relay: ON");
digitalWrite(RELAY_PIN, HIGH);
delay(2000);
// Turn relay OFF
Serial.println("Relay: OFF");
digitalWrite(RELAY_PIN, LOW);
delay(2000);
}Wiring diagram and example code generated by Codey.online — https://www.codey.online
