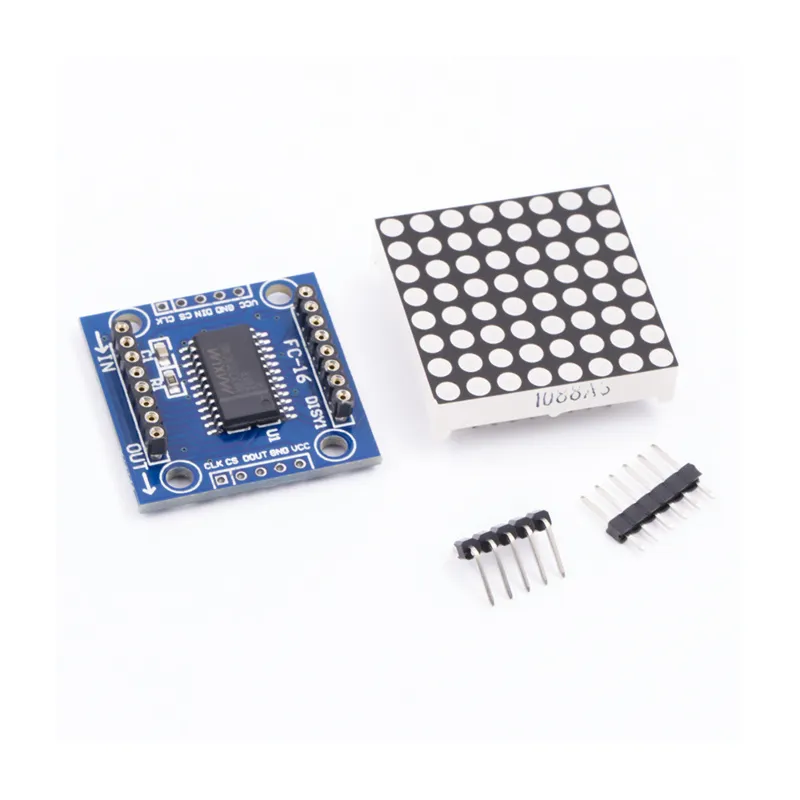

MAX7219 er en IC, der bruges til at styre LED-paneler med fælles katode, 7-segment displays og niveauindikatorer, der kommunikerer via SPI-interfacet. Dette board har et 8x8 dot matrix LED-display. Flere moduler kan kædes sammen ved hjælp af header-forbindelser.
Specifikationer:

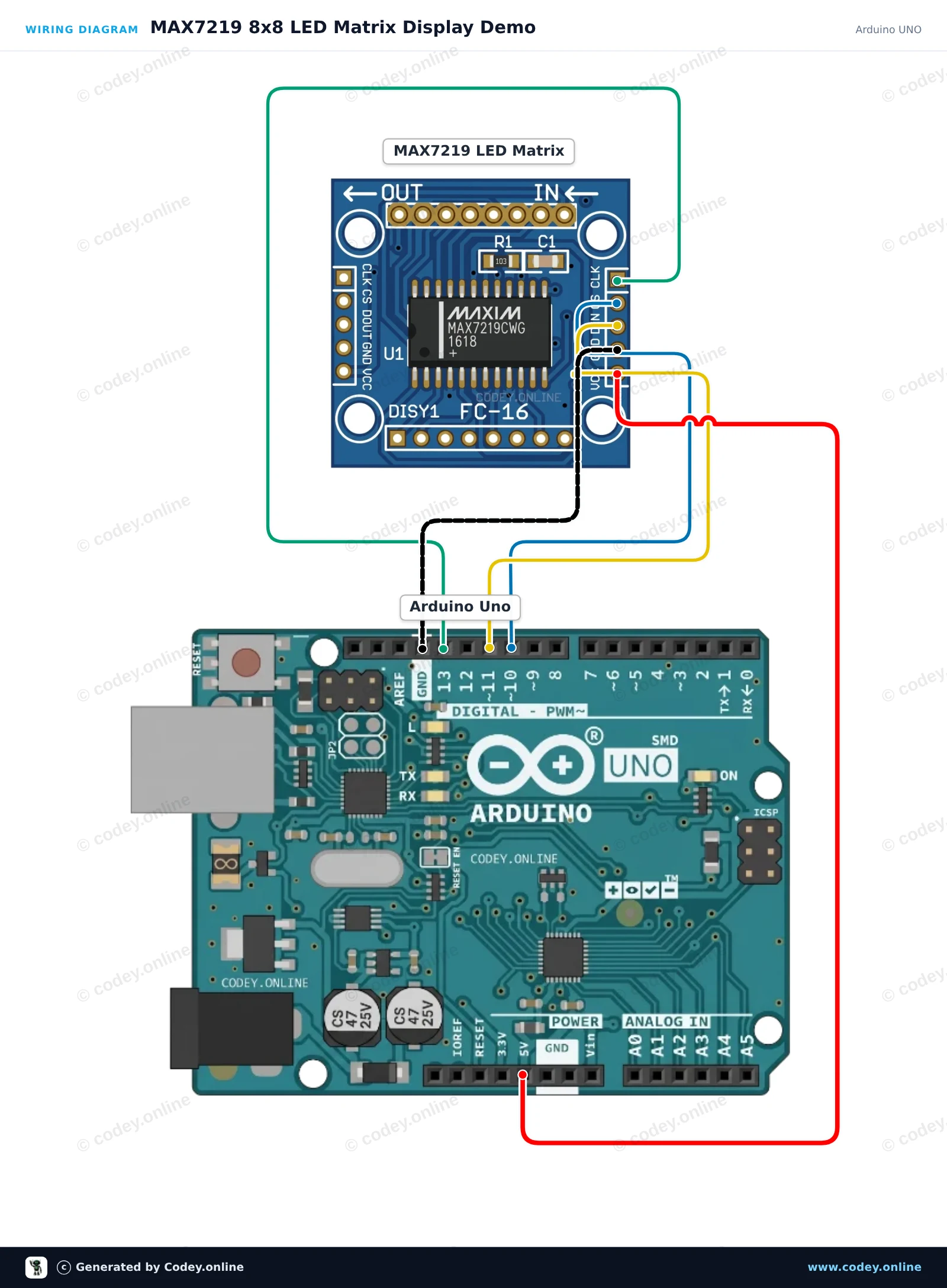

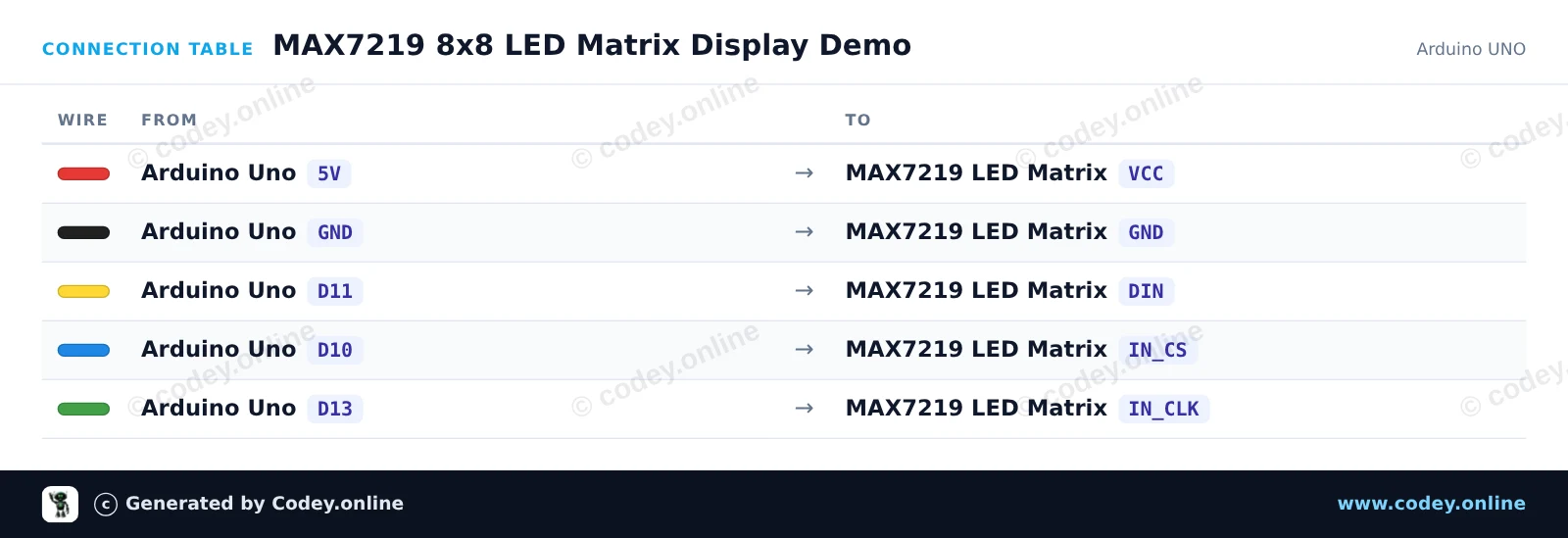

Sådan tilslutter du LED Matrix Module MAX7219 Blå til en Arduino UNO eller ESP32, med en eksempelsketch, du kan uploade med det samme.
Dette projekt viser, hvordan man styrer en 8x8 LED-matrix med MAX7219-driverchippen. Sketch'en vækker matrixen, indstiller et behageligt lysstyrkeniveau og animerer en hoppende prik gennem alle rækker og kolonner.
/*
* ==================================================================
* Generated by Codey.online — https://www.codey.online
* ==================================================================
* Project : MAX7219 8x8 LED Matrix Display Demo
* Board : Arduino UNO (arduino:avr:uno)
* Parts : LED Matrix Module MAX7219
* Libraries : LedControl 1.0.6
*
* Codey Online is an AI-powered browser IDE for Arduino and ESP32.
* Describe your project and Codey writes the code, draws the wiring
* diagram and uploads it to your board, straight from the browser.
* This code is free to use, modify and share, without warranty.
* ==================================================================
*/
#include <LedControl.h>
const int DIN_PIN = 11;
const int CLK_PIN = 13;
const int CS_PIN = 10;
// Create LedControl instance: LedControl(DIN, CLK, CS, number_of_matrices)
LedControl lc = LedControl(DIN_PIN, CLK_PIN, CS_PIN, 1);
// 8x8 bitmap for a smile icon
const byte SMILE[8] = {
B00111100,
B01000010,
B10100101,
B10000001,
B10100101,
B10011001,
B01000010,
B00111100
};
// 8x8 bitmap for a heart icon
const byte HEART[8] = {
B00000000,
B01100110,
B11111111,
B11111111,
B01111110,
B00111100,
B00011000,
B00000000
};
void drawBitmap(const byte bitmap[]) {
for (int row = 0; row < 8; row++) {
lc.setRow(0, row, bitmap[row]);
}
}
void setup() {
Serial.begin(115200);
// Wake up MAX7219 from power-saving mode
lc.shutdown(0, false);
// Set medium brightness (0 to 15)
lc.setIntensity(0, 6);
// Clear the display
lc.clearDisplay(0);
Serial.println(F("MAX7219 Matrix initialized!"));
}
void loop() {
// Display Heart
drawBitmap(HEART);
delay(1500);
// Display Smile
drawBitmap(SMILE);
delay(1500);
// Pixel sweep effect
lc.clearDisplay(0);
for (int row = 0; row < 8; row++) {
for (int col = 0; col < 8; col++) {
lc.setLed(0, row, col, true);
delay(25);
lc.setLed(0, row, col, false);
}
}
}
Nødvendige biblioteker: LedControl 1.0.6
Wiring diagram and example code generated by Codey.online — https://www.codey.online

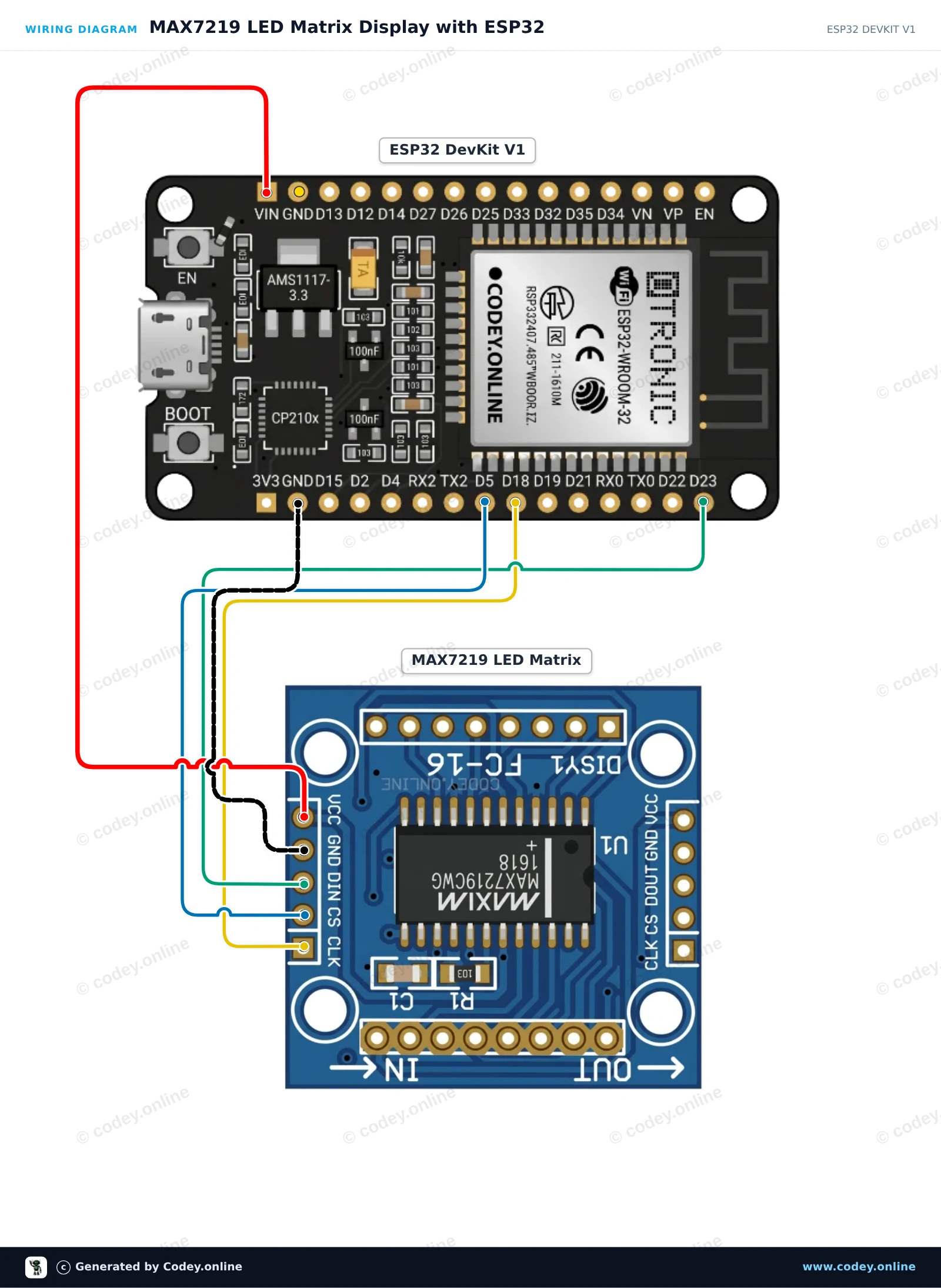

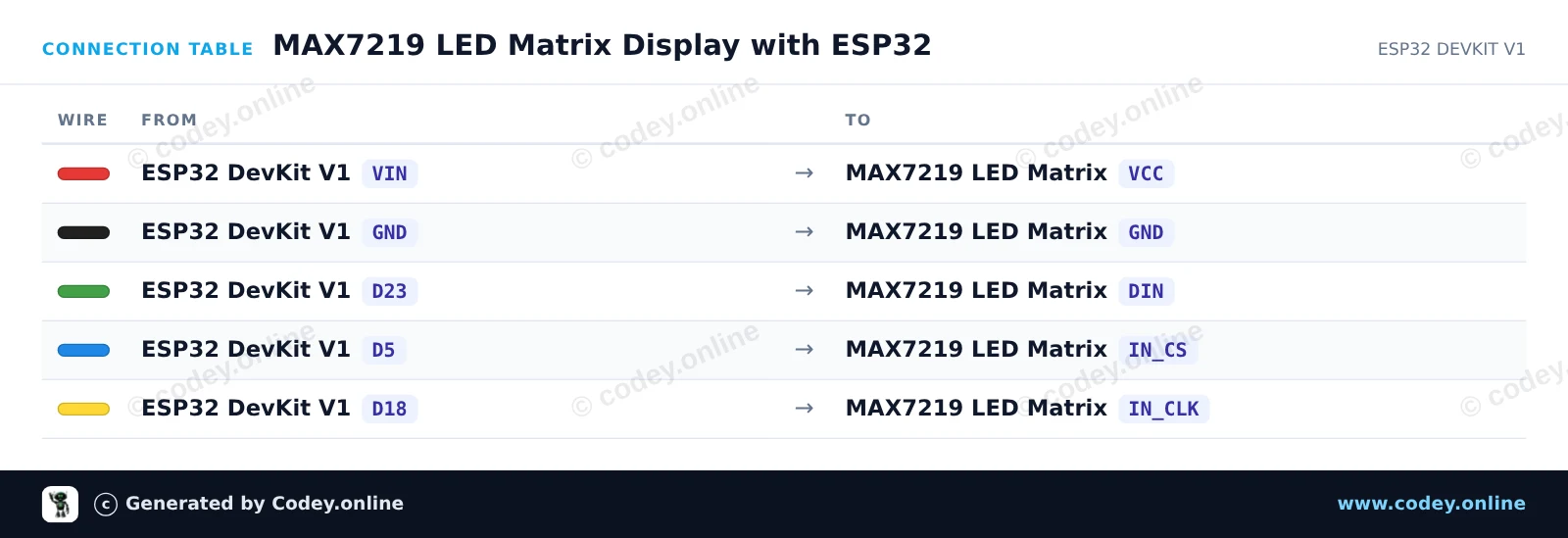

Dette projekt viser brugerdefinerede mønstre og animationer på et 8x8 MAX7219 LED-matrixmodul ved hjælp af hardware SPI. ESP32 kommunikerer med driveren via GPIO 23 (MOSI/DIN), GPIO 18 (SCK/CLK) og GPIO 5 (CS) og forsyner displayet direkte fra 5V VIN-pin’en.
/*
* ==================================================================
* Generated by Codey.online — https://www.codey.online
* ==================================================================
* Project : MAX7219 LED Matrix Display with ESP32
* Board : ESP32 DEVKIT V1 (esp32:esp32:esp32doit-devkit-v1)
* Parts : LED Matrix Module MAX7219
* Libraries : none (built-in)
*
* Codey Online is an AI-powered browser IDE for Arduino and ESP32.
* Describe your project and Codey writes the code, draws the wiring
* diagram and uploads it to your board, straight from the browser.
* This code is free to use, modify and share, without warranty.
* ==================================================================
*/
#include <SPI.h>
const int CS_PIN = 5;
// MAX7219 register addresses
const byte REG_NOOP = 0x00;
const byte REG_DECODE = 0x09;
const byte REG_INTENSITY = 0x0A;
const byte REG_SCANLIMIT = 0x0B;
const byte REG_SHUTDOWN = 0x0C;
const byte REG_DISPTEST = 0x0F;
// Bitmaps for 8x8 graphics
const byte smile[8] = {
0b00111100,
0b01000010,
0b10100101,
0b10000001,
0b10100101,
0b10011001,
0b01000010,
0b00111100
};
const byte heart[8] = {
0b00000000,
0b01100110,
0b11111111,
0b11111111,
0b11111111,
0b01111110,
0b00111100,
0b00011000
};
void writeRegister(byte reg, byte data) {
digitalWrite(CS_PIN, LOW);
SPI.transfer(reg);
SPI.transfer(data);
digitalWrite(CS_PIN, HIGH);
}
void clearDisplay() {
for (byte row = 1; row <= 8; row++) {
writeRegister(row, 0x00);
}
}
void drawBitmap(const byte bitmap[8]) {
for (byte row = 0; row < 8; row++) {
writeRegister(row + 1, bitmap[row]);
}
}
void setup() {
pinMode(CS_PIN, OUTPUT);
digitalWrite(CS_PIN, HIGH);
// Initialize hardware SPI (VSPI: SCK=18, MOSI=23)
SPI.begin();
// Configure MAX7219
writeRegister(REG_DISPTEST, 0x00); // Normal operation
writeRegister(REG_SCANLIMIT, 0x07); // Scan all 8 digits/rows
writeRegister(REG_DECODE, 0x00); // No BCD decoding (raw matrix mode)
writeRegister(REG_INTENSITY, 0x04); // Brightness (0x00 to 0x0F)
writeRegister(REG_SHUTDOWN, 0x01); // Wake up module
clearDisplay();
}
void loop() {
// Display smiley face
drawBitmap(smile);
delay(2000);
// Display heart
drawBitmap(heart);
delay(2000);
// Row sweep animation
clearDisplay();
for (byte i = 1; i <= 8; i++) {
writeRegister(i, 0xFF);
delay(100);
}
for (byte i = 1; i <= 8; i++) {
writeRegister(i, 0x00);
delay(100);
}
}
Wiring diagram and example code generated by Codey.online — https://www.codey.online
